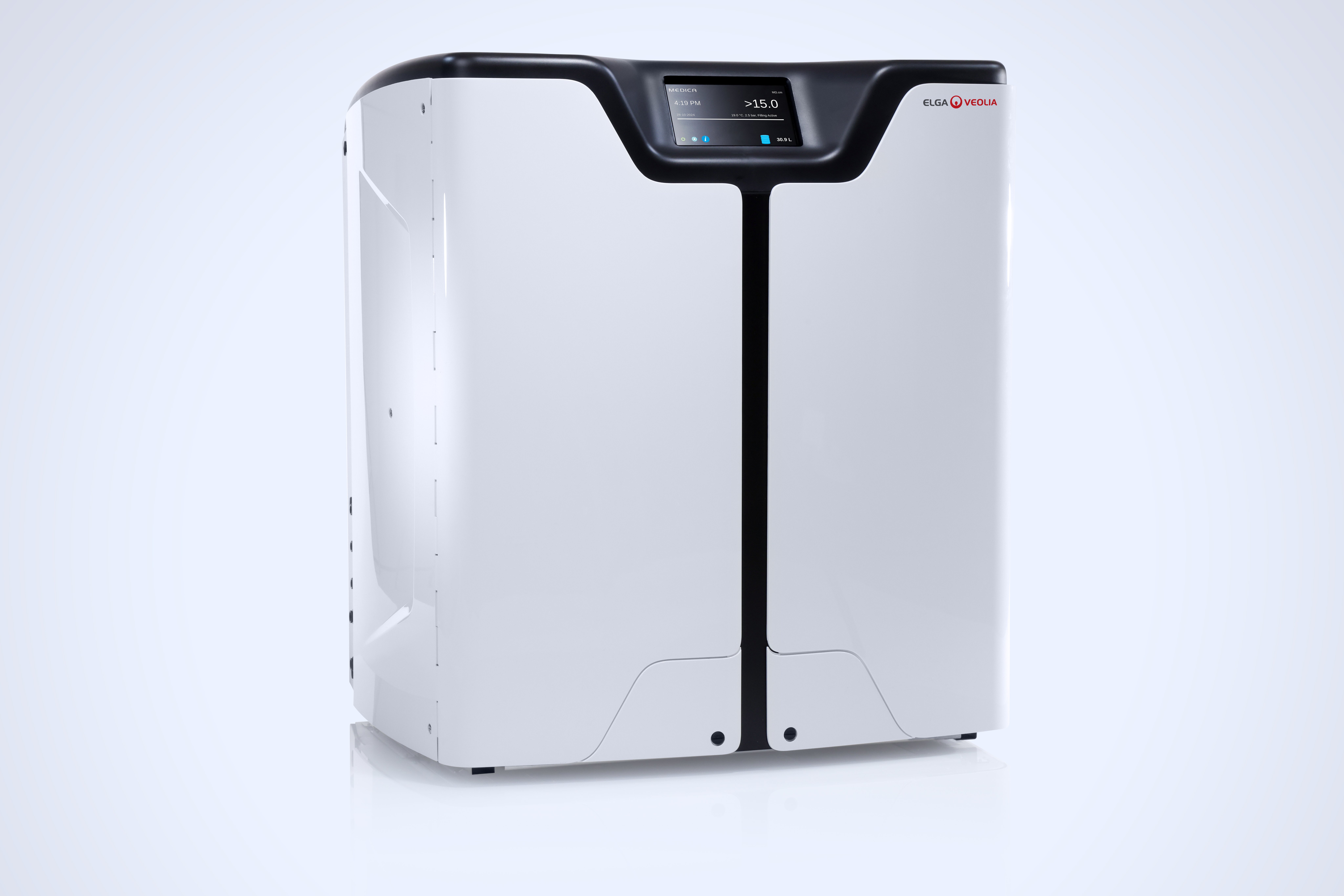

MEDICA® 150
Providing 150 l/hr of CLRW compliant water
Sustainable design and consumables choices
Maximised system uptime
Supports connections to multiple analysers
Mercury-free LED UV purification, increased sustainability and reduced hazards
Extended design life, reduced environmental impact
7 in. multitouch touch screen, integrated unit with quick start-up and intuitive software
Space saving under-bench design, allowing increased efficiency of lab space
MEDICA’s long standing trust and dependability, now with a longer design life and lower impact consumables
Integral to clinical diagnostics labs since 1995, MEDICA 150 has increased sustainability and ease-of-use, modern technology, software and a new design. Still supported by our global service of engineers, MEDICA allows clinical processes to continue seamlessly and effectively, maximising uptime and lab workflow efficiency.
Tech Specs
| Product Feedwater | |
|---|---|
| Flow rate (l/min)r | 4.5, @ 1 bar, 30m maximum distribution length |
| Daily volume (typical) (L) | 1200 |
| Daily volume (max) (L) | 3600 |
| Inorganics (MΩ.cm) | >10 @ 25°C |
| TOC (ppbC) | < 30 |
| Bacteria (CFU/ml) | < 1* |
| Particles (µm) | 0.05 |
| Product Feedwater | |
|---|---|
| Flow rate (l/min)r | 4.5, @ 1 bar, 30m maximum distribution length |
| Daily volume (typical) (L) | 1200 |
| Daily volume (max) (L) | 3600 |
| Inorganics (MΩ.cm) | >10 @ 25°C |
| TOC (ppbC) | < 30 |
| Bacteria (CFU/ml) | < 1* |
| Particles (µm) | 0.05 |
Consumables
Increase in airborne contaminants and potential recontamination of purified water
Increase in airborne contaminants and potential recontamination of purified water
FAQs
- What is the MEDICA Range?
ELGA’s MEDICA Range is designed to support clinical diagnostic testing, by delivering high quality, compliant CLRW water to millions of lab users worldwide. To date, MEDICA has enabled billions of clinical patient tests worldwide.
- What is the difference between MEDICA Pro EDI and MEDICA 50 / 100 / 150?
The new MEDICA range sees a removal of mercury UV, with the introduction of LED technology. Consumables have an improved capacity, and the EDI stack allows an extended system lifespan, in line with several major clinical analysers. There is also new software, and touch screen capability.
- What is different about the UV in MEDICA 50 / 100 / 150, compared to previous MEDICA models?
MEDICA 50 / 100 / 150 uses mercury-free LED UV. With a longer lifespan than mercury UV, this helps to reduce the carbon footprint, reduces system intervention and reduces hazards associated with mercury.
- What is ECO Mode?
ECO Mode is a new feature for MEDICA, for systems that are not required with constant use. ECO Mode allows a system that is not in use to have scheduled downtime (e.g. evenings, weekends etc.) and extends the lifetime of the consumables and system as a whole.
- What kind of alarms does the MEDICA 50 / 100 / 150 display?
There are three levels of alarm:
- Critical: the system is unable to supply water
- Non-critical: fault detected that has not yet prevented water supply
- Notification: fault detected that does not impact water supply
